207.5#(60mm) High Pressure Top Aerosol Cone. White and Clear Tin Lid

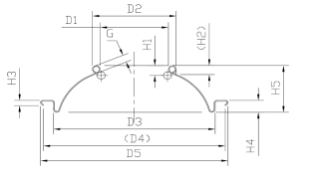

Flange diameter (D5) 69.90±0.25mm
Inner diameter of flange (D4) 67.80±0.25mm
Flange height (H3) 2.45±0.15mm
Buried depth (H4) 5.10±0.10mm
Total height (H5) 18.50±0.15mm
Contact height (H1) 4.00±0.10mm
Fit diameter (D3) 60.20±0.20mm
Outer diameter of tank mouth (D2) 31.20±0.10mm
Inside diameter of tank mouth (D1) 25.40±0.10mm
Dry glue quantity 70-90mg
Deformation pressure≥1.8MPa

Burst pressure ≥ high pressure 2.1MPa
Indenter fits well with the company's indenter

Sheet thickness 0.4
Iron hardness T4BA/T3CA

Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to

bear the courier costs.

Q:What product information do I need to provide?
A:You need to provide the purchased specifications (technical instructions and specification drawings are in our product description) coating and quantity.

Q:What are the shipping ports?
A:We ship from Tianjin Port, or according to your designated port.

Q:About product prices?

A:Prices vary from period to period due to cyclical changes in the price of raw materials. As we are the manufacturer, we will provide an affordable and satisfactory price.

Q: How long does your delivery time take?
A:In general, our delivery time is within 20-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.

  Tianjin Jiayi Haotian Industrial Co., Ltd. was established in 2006, specializing in the production of aerosol top and bottom covers, food cans, and coated/printing Tinplate.

  As a professional manufacturer and exporter, we collaborate with numerous well-known domestic enterprises and listed companies, exporting to Europe, Southeast Asia, Africa, and other regions.

  We are committed to developing a prosperous future with our clients through high-quality products and exceptional service.

Advantage

Established: In 2006.

Production Capacity: More than 30 production lines.

Can be customized based on your requirements.

Workforce: Over 200 employees.

Technical Expertise: More than 30 qualified technicians.

Competitive Pricing: Factory-direct prices without compromising quality.

Easy transportation:Close to the port of Tianjin,China. Only 80KM.

Punching Workshop

  The punching workshop currently operates 20 advanced gantry punching production lines, equipped with optical inspection equipment, automatic counters, and automatic bagging machines.

  Our product range covers all specifications of aerosol can top and bottom covers, as well as food can bottom/covers in the market.

  This includes applications in aerosols, PU foam, butane gas, automotive care products, daily chemical products, as well as tomato sauce, beverages, dried fruits, canned foods, and many other sectors.

Can Making Workshop

  The can manufacturing workshop currently has 5 production lines for three-piece cans, equipped with optical inspection equipment and automatic palletizers. These lines offer high production speed and stable product quality.

  Our products are widely used in various canned foods, including tomato sauce, beverages, dried fruits, and other canned goods.

Printing&Coating Workshop

The printing workshop is equipped with ：

4 color printing production lines,

4 coating production lines,

1 Huayu HYP45B-VI six-color printing machine,

1 Fuji P452 four-color printing machine,

1 Fuji P452 two-color printing machine,

1 Fuji P452 two-color ribbon printing machine,

3 Fuji F452 coating production lines,

1 Huayu C45 coating production line,

3 coil cutting production lines.

  It is also equipped with supporting facilities such as a CTP fully automatic computer plate-making room and a standard physical and chemical laboratory.

  While providing coating and printing services to our customers, we also offer production support for our company's lid and can manufacturing, effectively shortening the production cycle of lids and cans while ensuring product quality.

We actively participate in various exhibitions at home and abroad, and have received customer groups from all over the world by virtue of our excellent service, good product quality and excellent reputation. We look forward to cooperating with you!
